By now it should be clear that the data processed in Chioro is short-lived. The results are stored temporarily to allow analysis and interactive work. However, there is no guarantee that they will be preserved forever. In certain cases, it might be useful to have persistent tabular data that can be used in Chioro and this is the main feature of Data Tables. Unlike the other data in Chioro, Data Tables are a persistent mechanism for storing certain types of data that can be accessed globally.

There are two ways to create Data Tables. Firstly, each result view can be exported as a Data Table. Secondly, a new Data Table can be created manually.

#Creation of Data Tables

Due to their flexibility and a variety of use cases, many screens in Chioro offer the ability to create Data Tables on the fly. The following is a list of all possible options in Chioro that can be used to create Data Tables:

1. click on the following button in the Data Table menu: .
   This way a new empty Data Table will be created.
2. click in the menu Data table on the following button : .
   This will create a table with the same functionality / configuration as a data source.
3. click on attributes on various pages on the following button : .
   This will create a single column Data Table with the name of all attributes.
4. click on attributes on various pages on the following button : .
   This will create a single column Data Table with the unique values of the selected attribute.
5. click on result on various pages on the following button : .
   This will create a copy of this data as a Data Table.

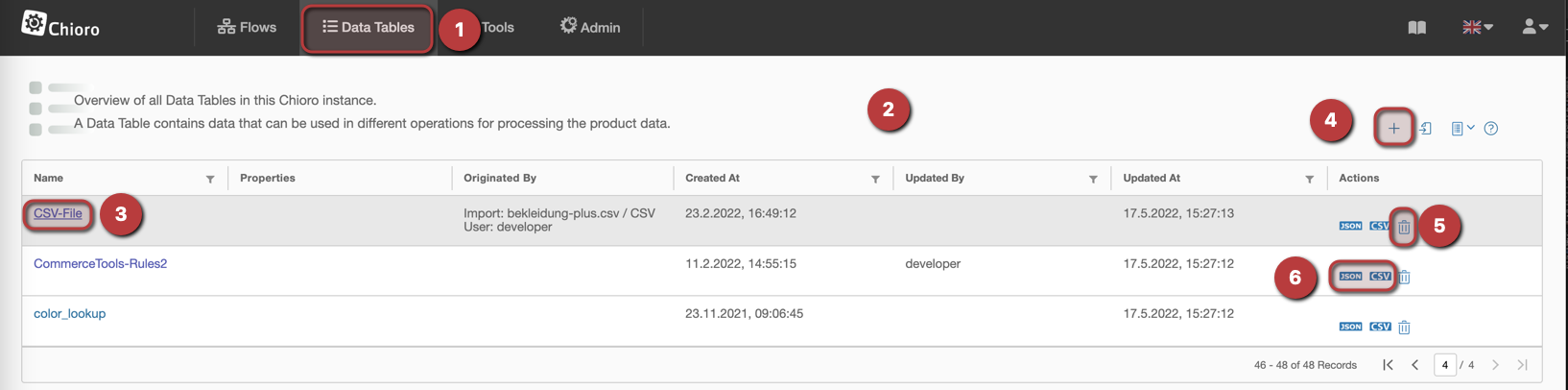

The Data Tables view can be found as follows:

#1. Menu item Data Tables

In the navigation guide, the menu item Data Tables navigates to the Data Tables overview.

#2. Data tables inventory

All the available Data Tables are displayed line by line. It also contains information about the source/origin of the data in the table.

#3. Edit Data Table

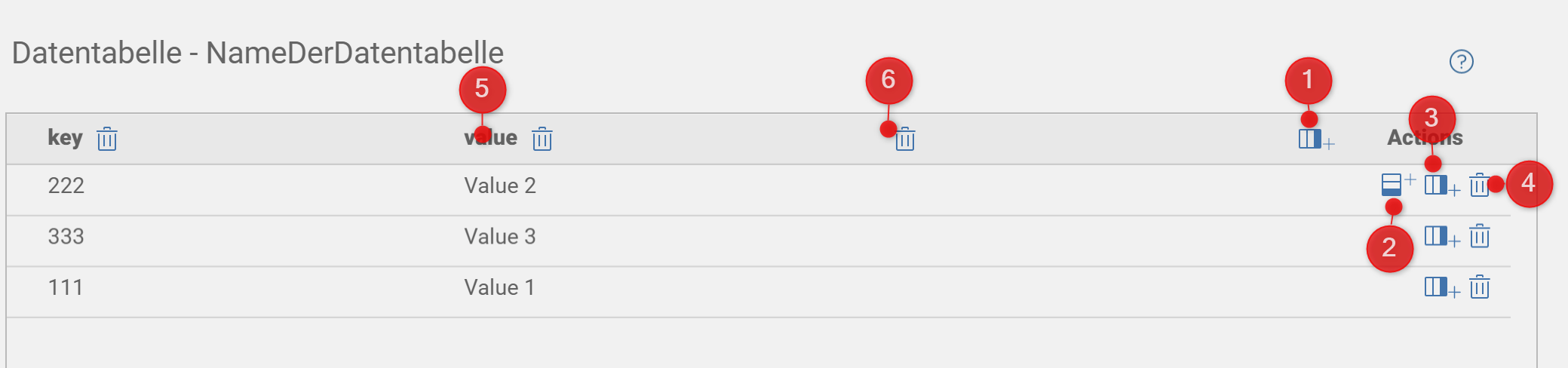

To edit the Data Table you can click on the name, this will open the following view:

Columns in the table that consist of nested objects (e.g. JSON import with nested objects) cannot be edited. Also the column name cannot be changed.

The following options are available:

1. add columns
2. add row below
3. add row above
4. remove row
5. edit column name by double-clicking on the column. The column name is now ready for editing. The ‘Enter’ button confirms the change.
6. remove column
7. edit value by double-clicking on the value. The value is now ready for editing. The Enter key confirms the change.

#4. Add Data Table

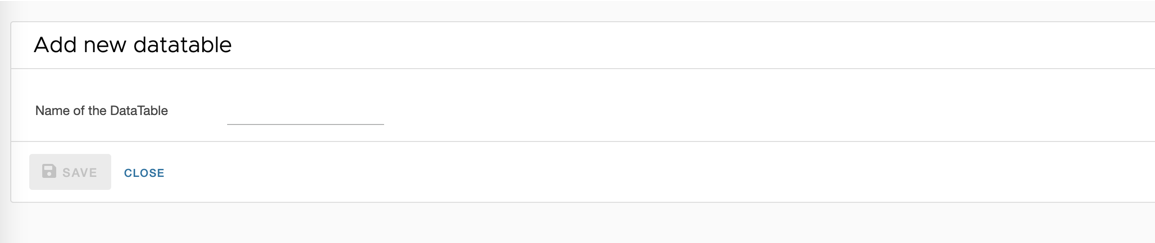

With the plus symbol a Data Table is added. A new section opens above the plus symbol, in which a name for the Data Table is defined. The ‘Enter’ key confirms the new name. Furthermore it is possible to create a new datatable after click on the save button. The window closes and the Data Table inventory is displayed. Now you can work with the new Data Table.

#5. Delete Data Table

The Data Table can be deleted here.

#6. Other Actions

Action buttons to export the data table to different formats.

#Live Datentabellen importieren

It is possible to import a data table as a “live data table”. This means that a flow created during the creation of a live data table is provided with a trigger that checks every 10 minutes whether the remote source (for example a JSON file on an FTP server) has changed. If this is the case, the data table is updated with the new values. The data table is linked to the generated flow.

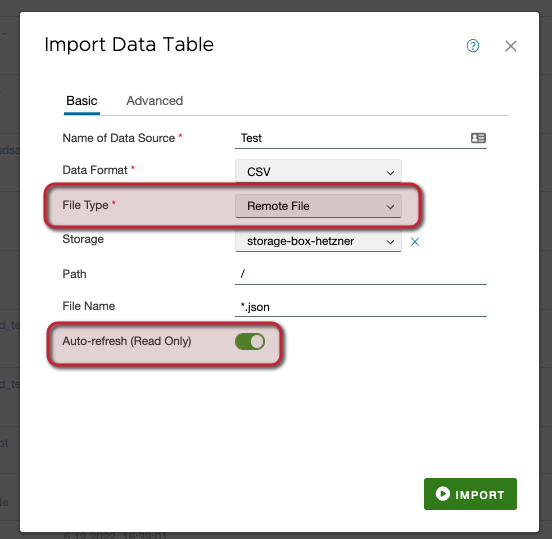

To create/import a live data table, open the Import window:

The switch “Auto-refresh (read only)” ensures that a live data table is created. This option can only be selected when “Remote” is selected as the file type.

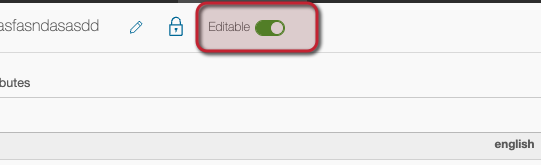

A data table is always read-only. But you have the possibility to change this option in the data table view:

If “Editable” is set, this data table cannot be changed. No columns or rows can be added or overwritten except by the flow that is being created.

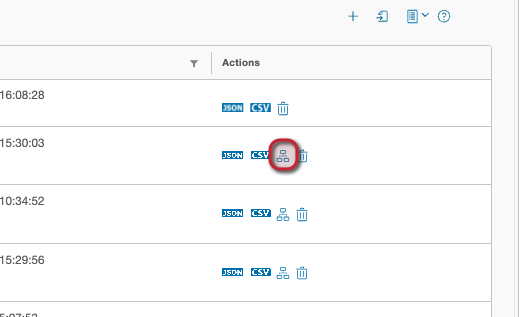

The generated flow is not displayed in the flow list. It can only be accessed via the data table list. Behind the respective data table there is an icon that links to the generated flow. There you can edit it as you like:

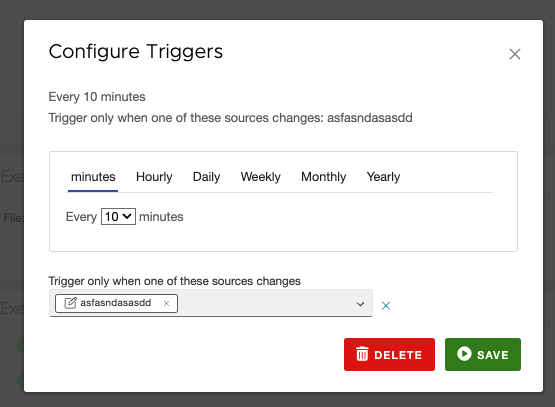

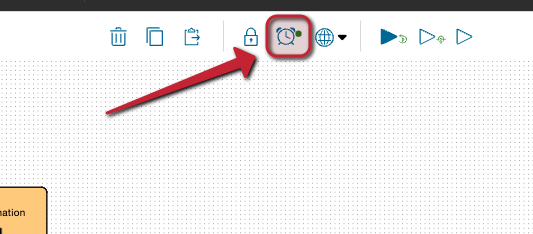

The generated flow has a predefined trigger that checks every 10 minutes if the source has changed:

Data tables that are not live data tables do not have this icon and the flow is deleted after it has run once. If the live data table is deleted, the linked flow is also deleted.

#Assign access rights for datatables

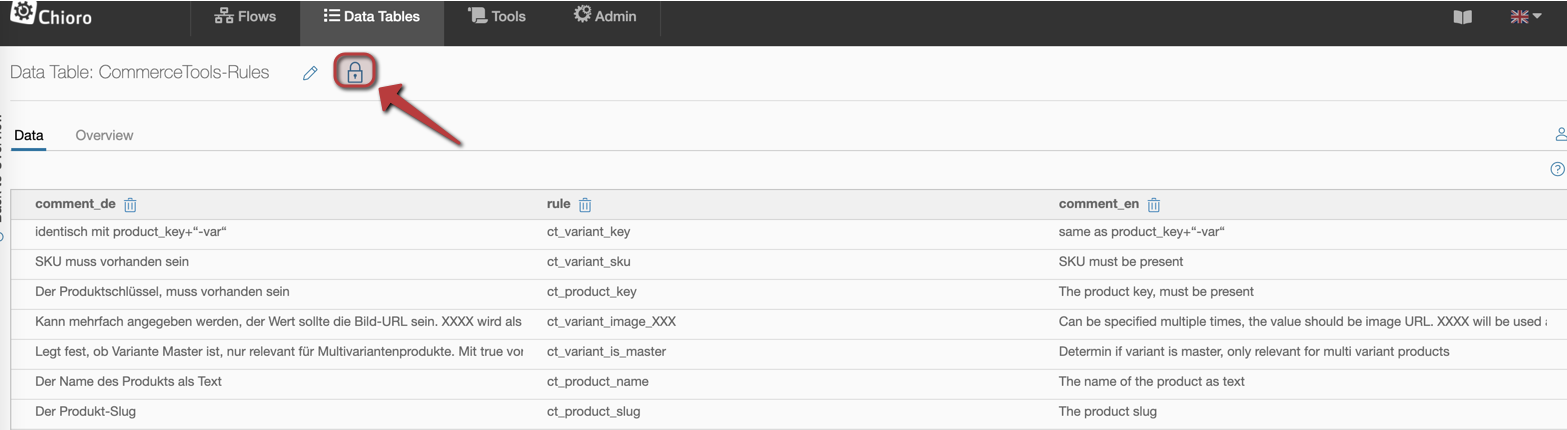

To edit the access rights for data table you can click on the name and then on the “Lock” icon.

Further notes on the configuration of access rights can be found under permissions.
